OECD & webkid open source chart library

Tine Wiederer

In cooperation with OECD, we recently published an open source charting library based on D3 called OECD Simple Charts. As the charts provided by the library are highly customizable, they can easily be styled and adjusted to fit your purpose.

At the moment, these three different chart types can be created:

The graphs are simple and very suitable for visualizing small amounts of data.

To get started, you can either install the library using npm

npm install oecd-simple-charts

or embed the oecd-simple-charts.min.js and oecd-simple-charts.min.css files, either downloaded from the repository or directly embedded from unpkg or jsDelivr.

<script src="https://unpkg.com/oecd-simple-charts/build/oecd-simple-charts.min.js"></script>
<link
  href="https://unpkg.com/oecd-simple-charts/build/oecd-simple-charts.min.css"
  rel="stylesheet"
/>

In order to create a chart you need to add a container DOM node. Then you can start with the configuration of the chart. You can set a title, change the size and color of the elements and add data points. Each chart has an update function, that takes an array of new data and updates the visualization.

Here are some examples for the three chart types:

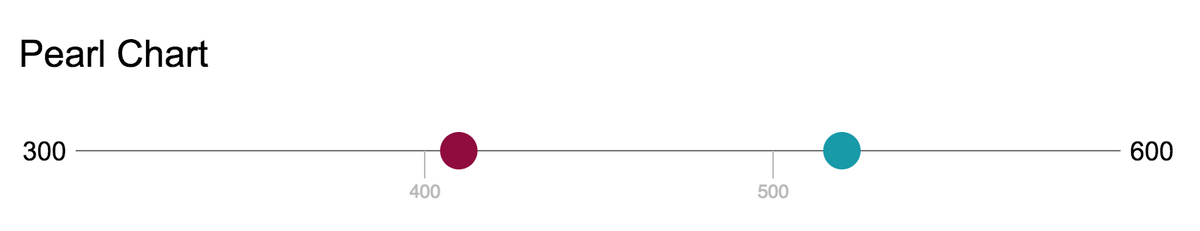

Pearlchart

Code

const PearlChartExample = new OECDCharts.PearlChart({
  container: '#PearlChartExample',
  extent: [300, 600],
  title: 'Pearl Chart',
  data: [
    {
      value: 500,
      color: '#900c3f',
    },
    {
      value: 550,
      color: '#189aa8',
    },
  ],
});

Result

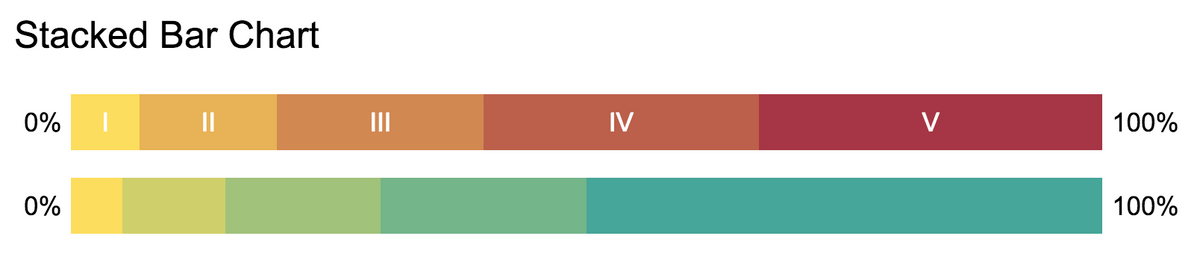

Stacked Bar

Code

const StackedChartExample = new OECDCharts.StackedChart({
  container: '#StackedChartExample',
  title: 'Stacked Bar Chart',
  data: [
    {
      values: [1, 2, 3, 4, 5],
      barLabels: ['0%', '100%'],
      colors: ['#fddd5d', '#900c3f'],
      stackLabels: ['I', 'II', 'III', 'IV', 'V'],
    },
    {
      values: [2, 4, 6, 8, 20],
      barLabels: ['0%', '100%'],
      colors: ['#fddd5d', '#189aa8'],
    },
  ],
});

Result

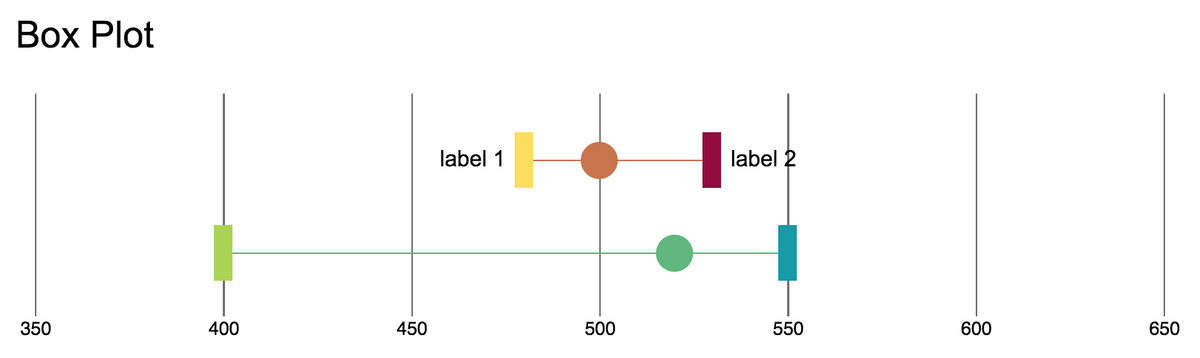

Boxplot

Code

const BoxPlotExample = new OECDCharts.BoxPlot({
  container: '#BoxPlotExample',
  title: 'Box Plot',
  extent: [350, 650],
  data: [
    {
      values: [480, 500, 530],
      colors: ['#fddd5d', '#c7754e', '#900c3f'],
      labelLeft: { text: 'label 1' },
      labelRight: { text: 'label 2' },
    },
    {
      values: [400, 520, 550],
      colors: ['#aad356', '#61b77f', '#189aa8'],
    },
  ],
});

Result

For further options and information have a look at the documentation. If there's anything missing, let us know or open a pull request in the GitHub repository.
